BleBox devices

BleBox produces small, low-power, surprisingly affordable, feature-rich WiFi devices for serverless home automation.

Configuration

To add the BleBox devices integration to your Home Assistant instance, use this My button:

BleBox devices can be auto-discovered by Home Assistant. If an instance was found, it will be shown as Discovered. You can then set it up right away.

Manual configuration steps

If it wasn’t discovered automatically, don’t worry! You can set up a manual integration entry:

  • Browse to your Home Assistant instance.

  • Go to Settings > Devices & Services.

  • In the bottom right corner, select the Add Integration button.

  • From the list, select BleBox devices.

  • Follow the instructions on screen to complete the setup.

For the best experience, make sure your BleBox devices have the most recent available firmware installed.

BleBox controllers

rollerGate

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Stop

gateBox

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open (trigger primary output)
  • Close (trigger primary output)
  • Stop (trigger secondary output)
  • Gate state (open, close, unknown)

Additional features

  • “stop” requires setting your device’s secondary trigger as stop (via website or phone app).

gateBox Pro

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open (trigger primary output)
  • Close (trigger primary output)
  • Stop (trigger secondary output)
  • Gate state (open, close, unknown)

Additional features

  • “stop” requires setting your device’s secondary trigger as stop (via website or phone app).

doorBox

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open
  • Door state (open, close, unknown)

saunaBox

This integration adds the Blebox device as a climate entity to Home Assistant.

Key supported features

  • On
  • Off
  • Setting target temperature
  • Read current temperature

thermoBox

This integration adds the Blebox device as a climate entity to Home Assistant.

Key supported features

  • On
  • Off
  • Set target temperature
  • Read current temperature

Additional features

  • Changing operation mode (cooling/heating) requires direct access to device or from wBox app

shutterBox

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Tilt regulation

shutterBoxDC

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Tilt regulation

shutterBox DIN

This integration adds the Blebox device as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Tilt regulation

switchBox

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Energy consumption measurement

switchBox DIN

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Energy consumption measurement

switchBoxD

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Energy consumption measurement

switchBoxD DIN

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Energy consumption measurement

switchBoxDC

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

switchBox LIGHT

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

switchBoxT PRO

This integration adds the Blebox device as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

dimmerBox

This integration adds the Blebox device as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Brightness

wLightBox

This integration adds the Blebox device to Home Assistant as:

  • multiple MONO lights entities,
  • 1 or 2 lights CCT entities,
  • 1 light RGB or RGBW or RGBCCT entity.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color (RGB, RGBW, RGBCCT mode only)
  • White temperature control (RGBCCT & CCT mode only)
  • Effects

Additional features

  • Option to change control mode (linear / gamma correction) is available in wBox app.
  • Option to change color mode (MONO/CCT) is available in wBox app.
  • You can create your own effects. Creator of effects is available in wBox app.
  • After a settings change, the device needs to be reloaded.

wLightBox PRO

This integration adds the Blebox device to Home Assistant as:

  • multiple MONO lights entities,
  • 1 or 2 lights CCT entities,
  • 1 light RGB or RGBW or RGBCCT entity.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color (RGB, RGBW, RGBCCT mode only)
  • White temperature control (RGBCCT & CCT mode only)
  • Effects

Additional features

  • Option to change control mode (linear / gamma correction) is available in wBox app.
  • Option to change color mode (MONO/CCT) is available in wBox app.
  • You can create your own effects. Creator of effects is available in wBox app.
  • After a settings change, the device needs to be reloaded.

wLightBoxS

This integration adds the Blebox device as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness

dacBoxD DC

This integration adds the Blebox device as 2 lights MONO or 1 light CCT entity to Home Assistant.

Key supported features

  • On
  • Off
  • Brightness / linear percentage control (depends on device’s settings)
  • White temperature control (CCT mode only)
  • Effects

Additional features

  • Option to change control mode (linear / gamma correction) is available in wBox app.
  • Option to change color mode (MONO/CCT) is available in wBox app.
  • Own effects are possible to create. Creator of effects is available in wBox app.
  • After settings change, device needs to be reloaded.

wLightBoxS PRO

This integration adds the Blebox device as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness

pixelBox

This integration adds the Blebox device as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color

tempSensor

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of temperature

tempSensorAC

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of temperature for all probes

tempSensor PRO

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of temperature for all probes

floodSensor

This integration adds the Blebox device as a moisture binary sensor entity to Home Assistant.

Key supported features

  • Periodic read of moisture as either “detected” or “cleared”.

humiditySensor

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of humidity
  • Periodic read of temperature

wind&RainSensor

This integration adds the Blebox device as a sensor & binary sensor entity to Home Assistant.

Key supported features

  • Periodic read of current wind speed
  • Periodic read of state of rain detection

rainSensor

This integration adds the Blebox device as a binary sensor entity to Home Assistant.

Key supported features

  • Periodic read of state of rain detection

airSensor

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of:
    • pm1
    • pm2.5
    • pm10

windSensor PRO

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of current wind speed

actionBox, actionBoxS, and proxiBox

This integration does not add direct support for actionBox, actionBoxS, and proxiBox devices. It is however possible to integrate these devices with Home Assistant using automations via webhooks and wBox mobile app.

The configuration consists of two steps:

Generating the compatible webhook in Home Assistant

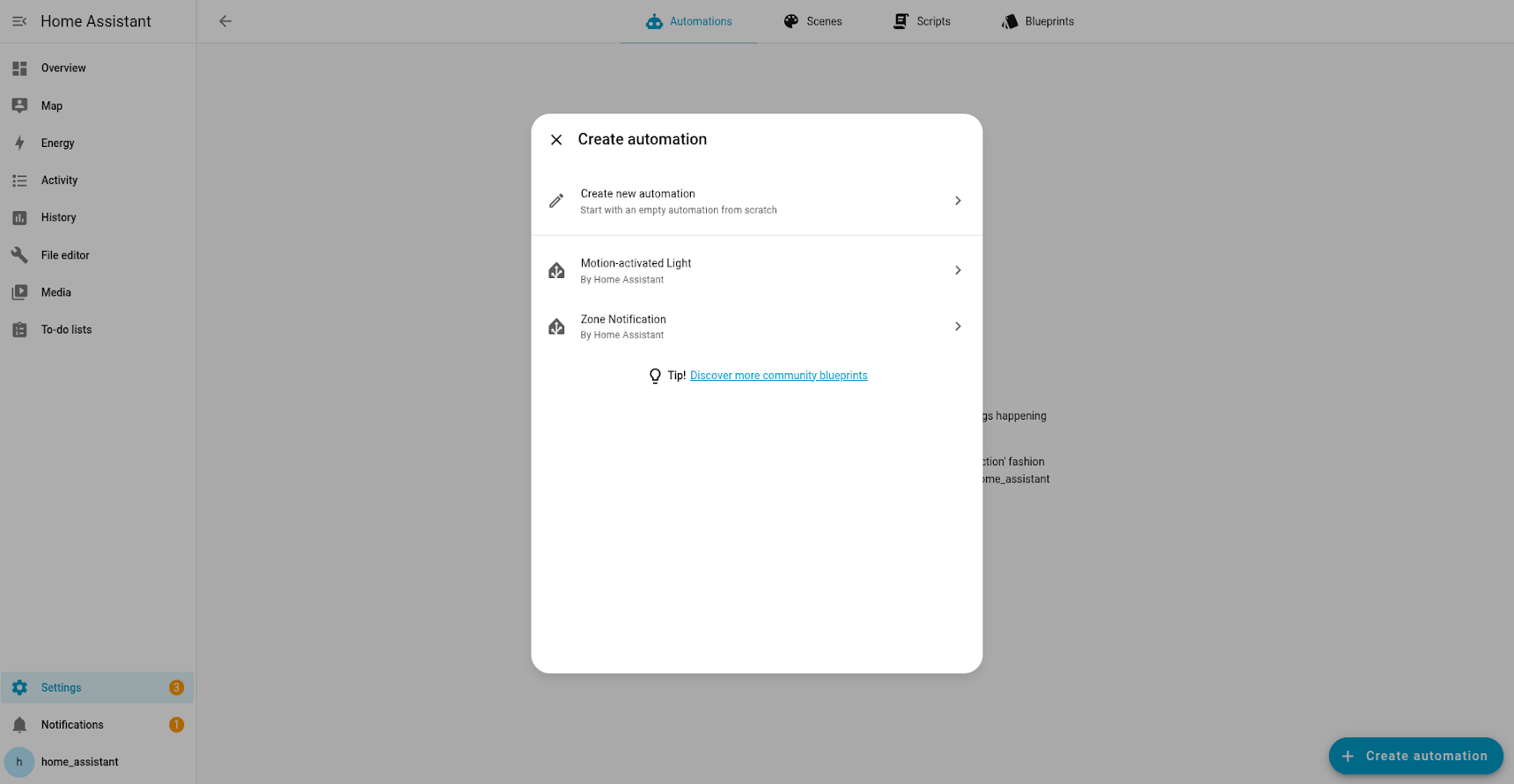

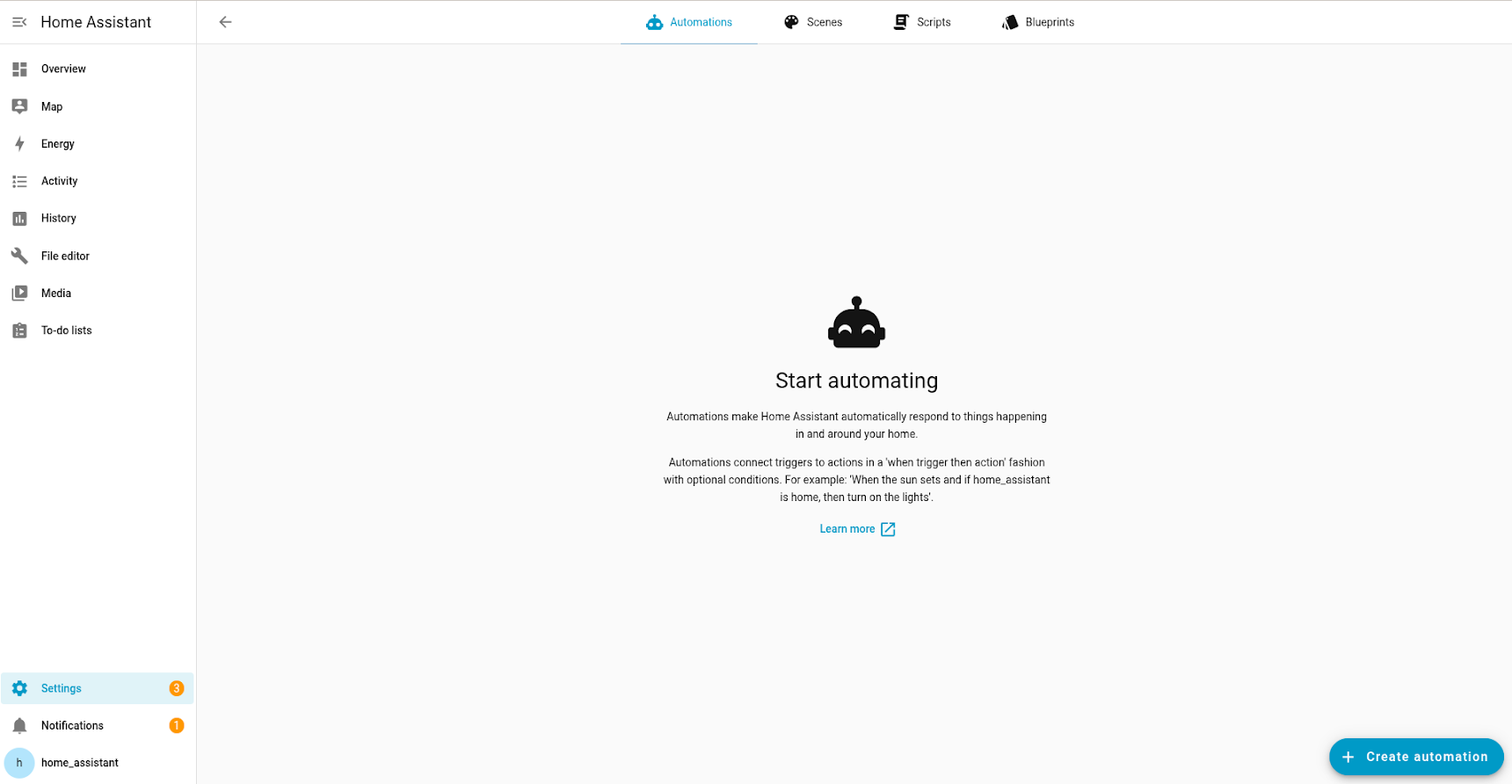

  1. Go to Settings > Automations & scenes and in the lower right corner, select the Create Automation button.

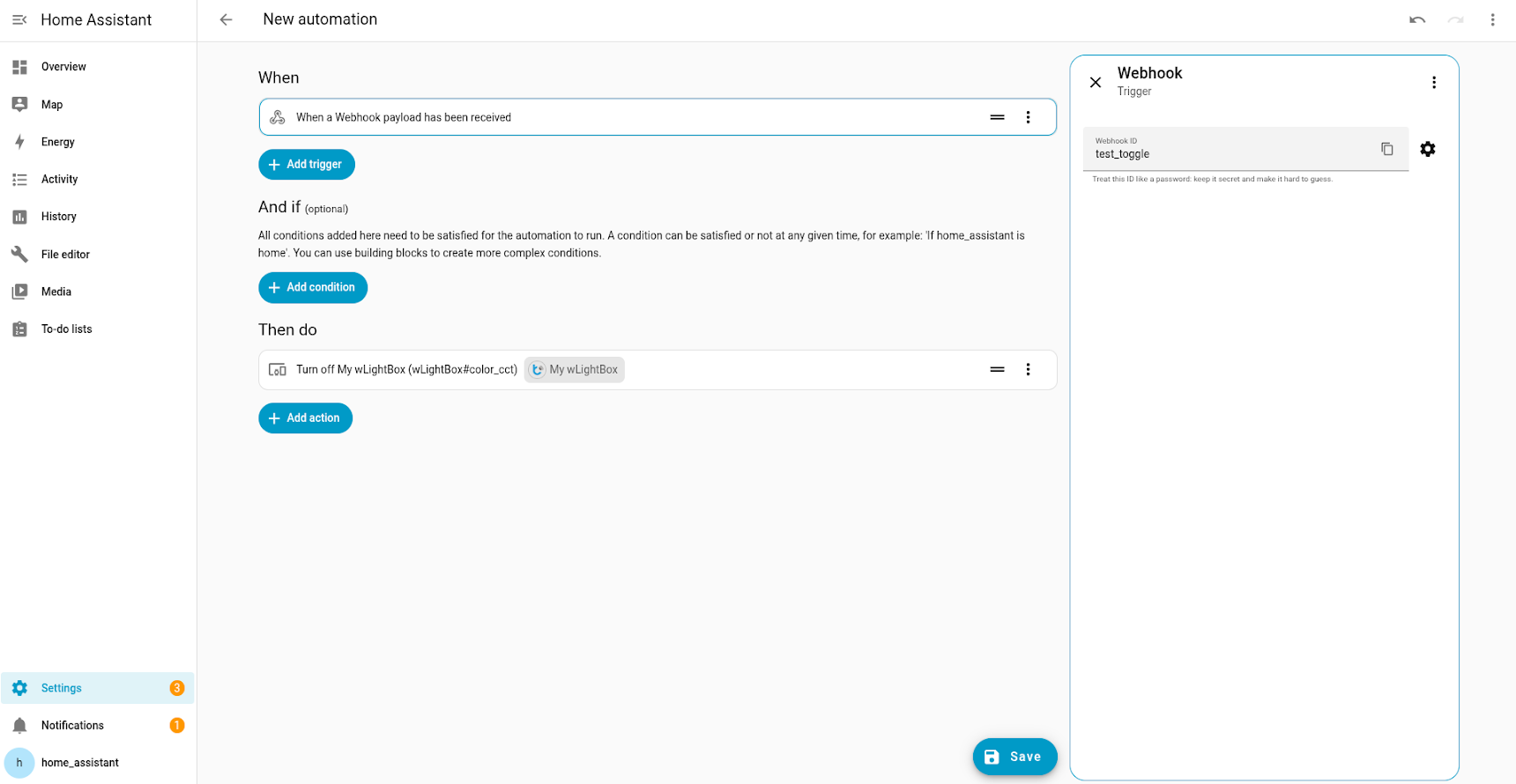

  2. Choose the Webhook as the trigger type

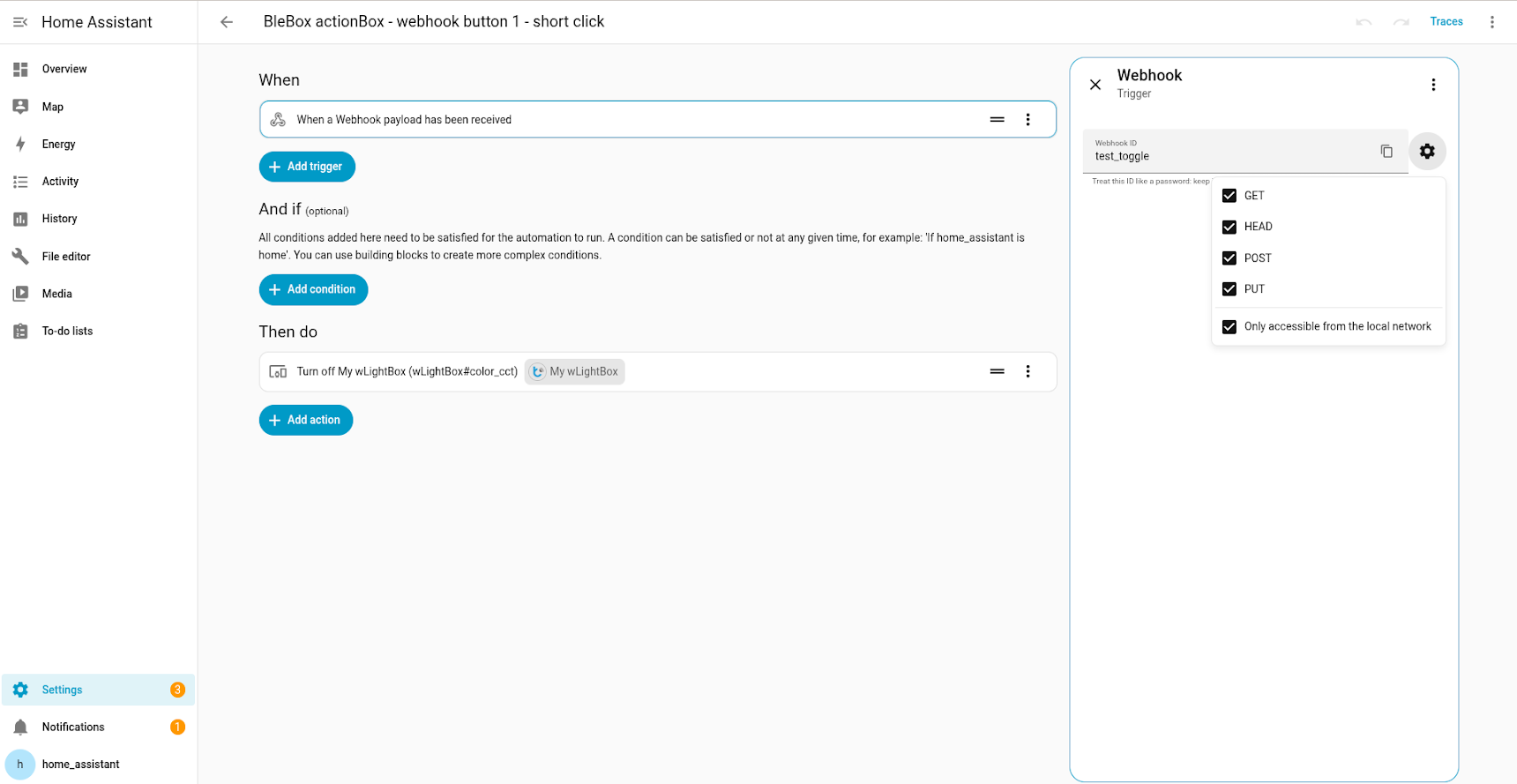

  3. Next to the webhook ID, select on the cog icon to allow the GET method.
  4. Copy the webhook URL to the clipboard by clicking the “copy” icon next to the webhook ID.
  5. Save the URL for later reference.

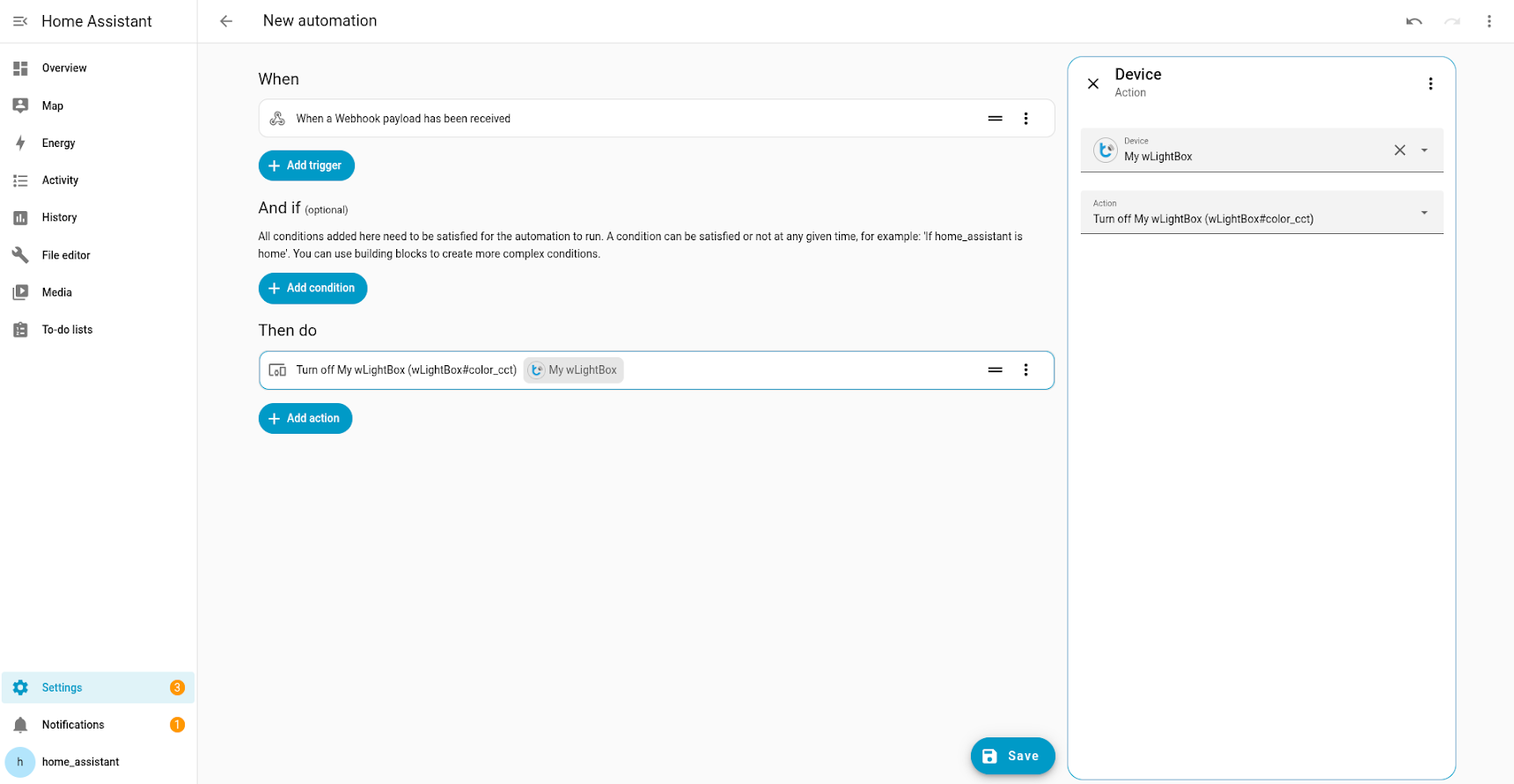

  6. If applicable, add any desired conditions (the And if section) and actions. (the Then do section)

Note: The webhook ID will be later needed in phase two and will have to be entered into the wBox mobile app. You may decide to use a more convenient text value. However, remember that this is the only thing that authenticates webhooks within your network. Treat this ID like a password.

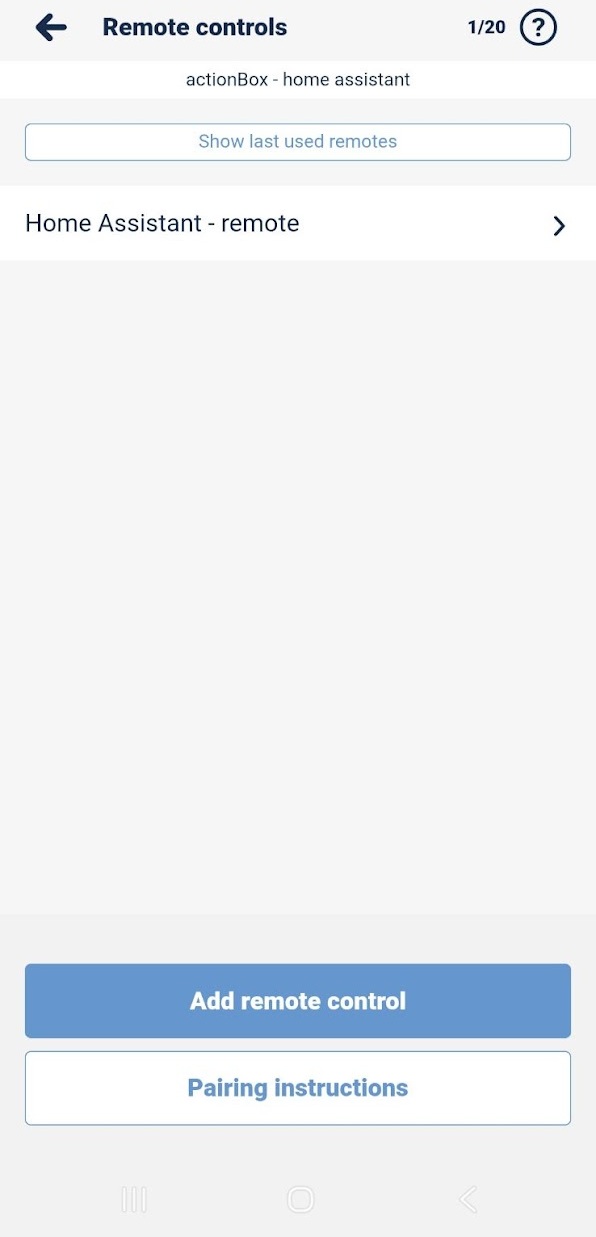

Configuring the device in the wBox app

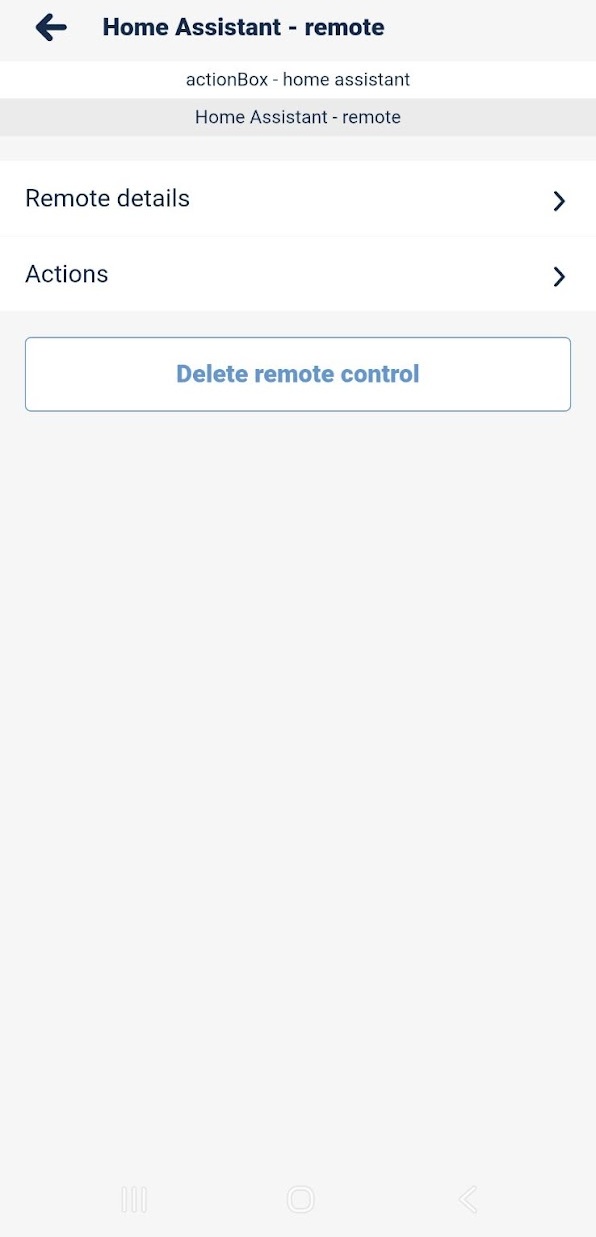

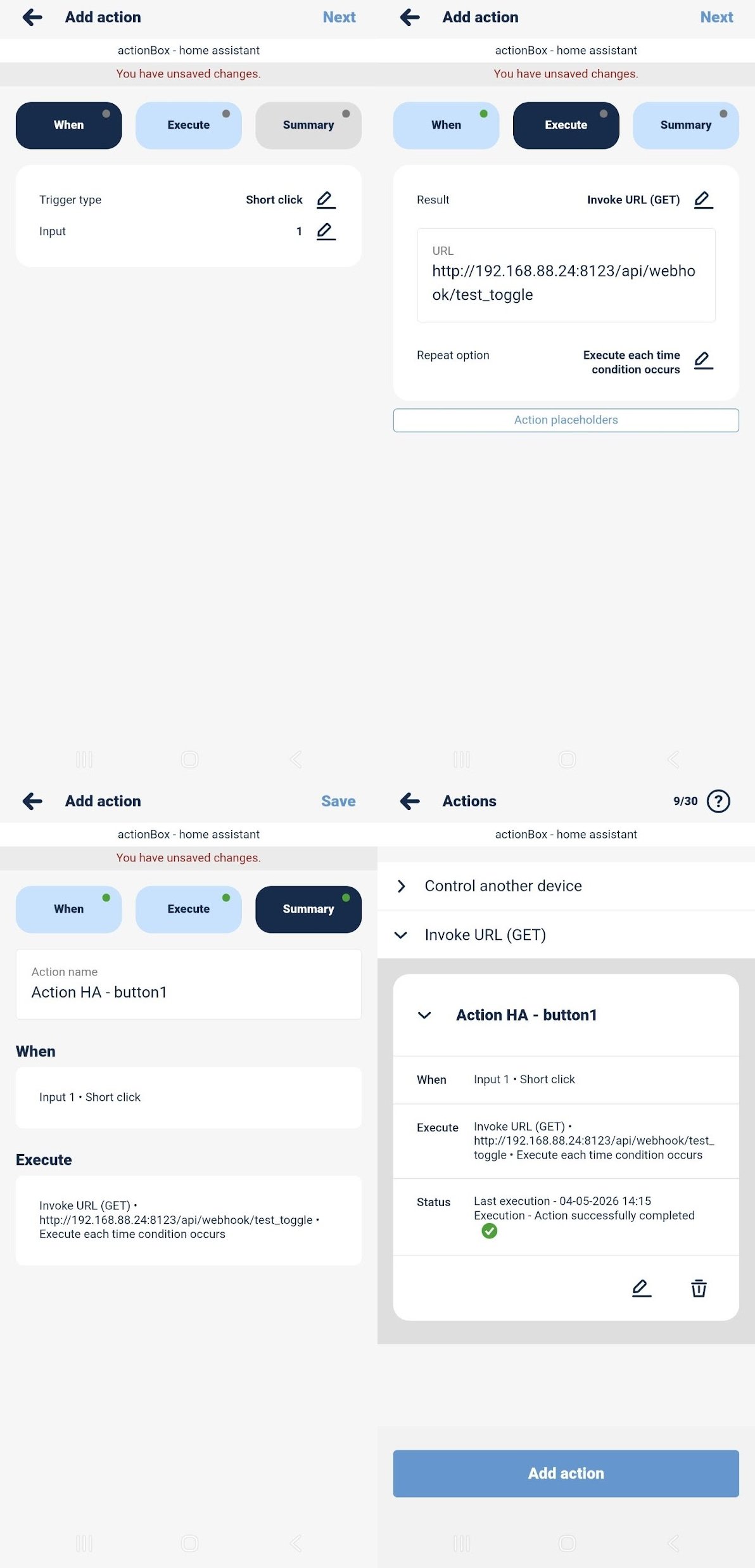

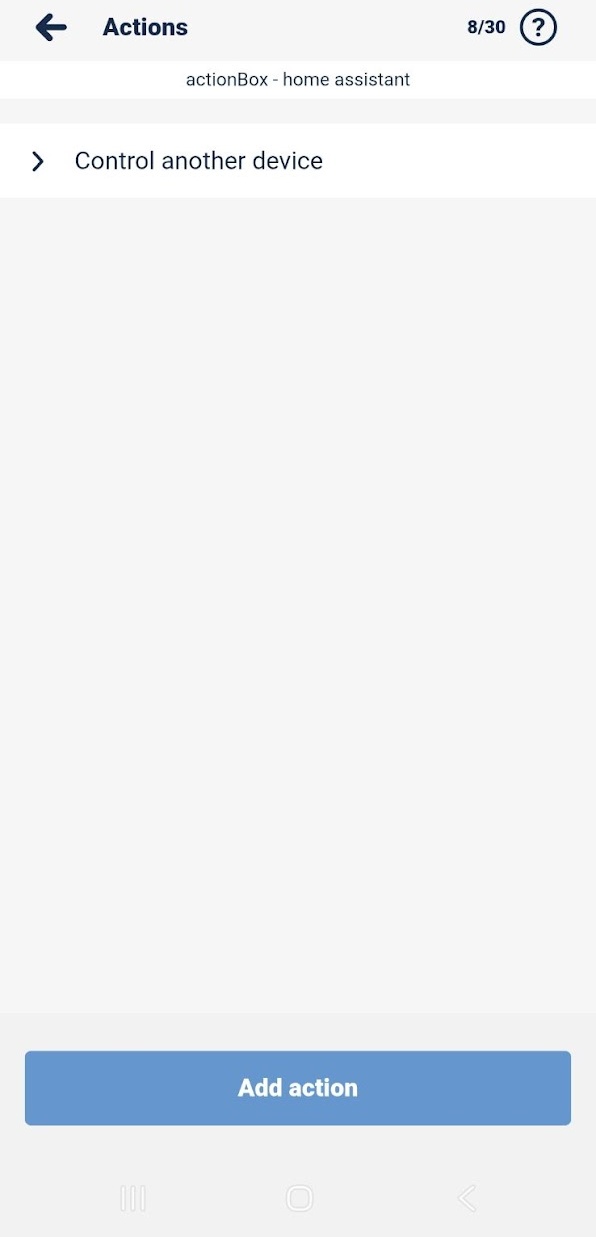

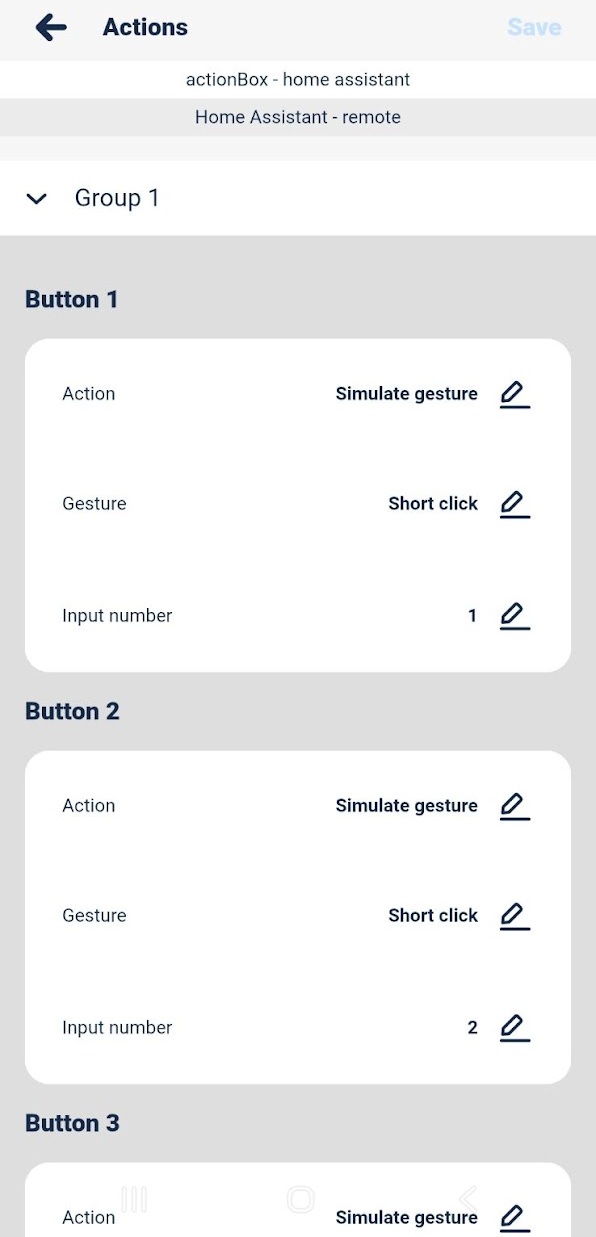

  1. Configure the device by adding the action of type “send URL”.
  2. Enter the webhook URL that you copied when generating the webhook. It is the URL address for the action.

Note: in order for this integration flow to work, the webhook URL host must be resolvable and accessible within the device network. If in doubt, please refer to the general documentation of automations with webhook triggers.

luxSensor

This integration adds the Blebox device as a sensor entity to Home Assistant.

Key supported features

  • Periodic read of illuminance (unit: lx)

“BleBox inside” controllers

Simon 54 GO SHUTTER

This integration adds the Simon 54 GO device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Tilt regulation

Simon 54 GO SWITCH

This integration adds the Simon 54 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

Simon 54 GO SWITCH D

This integration adds the Simon 54 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

Simon 54 GO LED 230V (dimmer)

This integration adds the Simon 54 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Brightness

Simon 54 GO LED MONO

This integration adds the Simon 54 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color

Simon 54 GO RGBW

This integration adds the Simon 54 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color

Simon 55 GO SHUTTER

This integration adds the Simon 55 GO device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Tilt regulation

Simon 55 GO SWITCH

This integration adds the Simon 55 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off

Simon 55 GO SWITCH D

This integration adds the Simon 55 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Brightness

Simon 55 GO LED 230V (dimmer)

This integration adds the Simon 55 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Brightness

Simon 55 GO LED MONO

This integration adds the Simon 55 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color

Simon 55 GO RGBW

This integration adds the Simon 55 GO device (“blebox inside”) as a switch entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness
  • Color

Simon 54 GO Control and Simon 55 GO Control

This integration does not add direct support for Simon 54 GO Control and Simon 55 GO Control devices. It is however possible to integrate these devices with Home Assistant using automations via webhooks and wBox mobile app.

The configuration consists of two steps:

FAKRO FTP-V/FTU-V WiFi

This integration adds the Fakro device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position

FAKRO ARF/ARP WiFi

This integration adds the Fakro device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position

FAKRO ARZ/AMZ/VMZ WiFi

This integration adds the Fakro device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position

SABAJ TV K-SMRT-4 - WIFI RJ-45

This integration adds the SABAJ device (“blebox inside”) as a button entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Up
  • Down
  • Fav

Wiśniowski RiCo

This integration adds the Wiśniowski device (“blebox inside”) as a cover entity to Home Assistant.

  • Open (trigger primary output)
  • Close (trigger primary output)
  • Stop (trigger secondary output)
  • Gate state (open, close, unknown) - only Pro version

Additional features

  • “stop” requires setting your device’s secondary trigger as stop (via website or phone app)

Polfendo smartGateControl

This integration adds the Polfendo device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Close
  • Position
  • Stop

Plast-met SMART LIGHT BOSSPIO

This integration adds the Plast-met device (“blebox inside”) as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness

Plast-met SMART LIGHT SIMPIO

This integration adds the Plast-met device (“blebox inside”) as a light entity to Home Assistant.

Key supported features

  • On
  • Off
  • Effects
  • Brightness

Tedee relay module

This integration adds the Tedee device (“blebox inside”) as a cover entity to Home Assistant.

Key supported features

  • Open
  • Door state (open, close, unknown)
