Z-Wave


This integration allows you to control a Z-Wave network via the Z-Wave JS driver. This is our recommended Z-Wave integration for Home Assistant. If you’re migrating from the legacy zwave, see our migration instructions.

To Run Z-Wave you will need a Supported Z-Wave dongle, a running Z-Wave JS server (using only one of the add-ons or installation methods described below), and the Z-Wave integration.

Configuration

Adding Z-Wave to your Home Assistant instance can be done via the user interface, by using this My button:

Z-Wave can be auto-discovered by Home Assistant. If an instance was found, it will be shown as “Discovered”, which you can select to set it up right away.

Manual configuration steps

If you run Home Assistant Container, Home Assistant Core, or you don’t want to use the built-in Z-Wave JS Server add-on, please see the advanced installation instructions.

For new installations, network security keys will be automatically generated for you. If this Z-Wave stick has already been paired with secure devices, you need to enter the previously used network key as the S0 network key. S2 security keys will be automatically generated for you. Make sure that you keep a backup of these keys in a safe place in case you need to move your Z-Wave stick to another device.

While your Z-Wave mesh is permanently stored on your stick, the additional metadata is not. When the Z-Wave integration starts up the first time, it will interview your entire Z-Wave network. Depending on the number of devices paired with the Z-Wave stick, this can take a while. You can speed up this process by manually waking up your battery-powered devices. Most of the time this is a press on the button on those devices (see their manual). It is not necessary to exclude/re-include devices from the mesh.

Services

Service zwave_js.set_config_parameter

This service will update a configuration parameter. To update multiple partial parameters in a single call, use the zwave_js.bulk_set_partial_config_parameters service.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to set the configuration parameter on. At least one entity_id, device_id, or area_id must be provided.
device_id no Device ID (or list of device IDs) to set the configuration parameter on. At least one entity_id, device_id, or area_id must be provided.
area_id no Area ID (or list of area IDs) for devices/entities to set the configuration parameter on. At least one entity_id, device_id, or area_id must be provided.
parameter yes The parameter number or the name of the property. The name of the property is case sensitive.
bitmask no The bitmask for a partial parameter in hex (0xff) or decimal (255) format. If the name of the parameter is provided, this is not needed.
value yes The target value for the parameter as the integer value or the state label. The state label is case sensitive.

Examples of setting a single parameter value

Let’s use parameter 31 for this device as an example to show examples of different ways that the LED 1 Blink Status (bottom) partial parameter can be set. Note that in places where we are using different values for the same key, the different values are interchangeable across the examples. We can, for instance, use 1 or Blink interchangeably for the value in all of the examples.

Example 1:

service: zwave_js.set_config_parameter
target:
  entity_id: switch.fan
data:
  parameter: 31
  bitmask: 0x01
  value: 1

Example 2:

service: zwave_js.set_config_parameter
target:
  entity_id: switch.fan
data:
  parameter: 31
  bitmask: 1
  value: "Blink"

Example 3:

service: zwave_js.set_config_parameter
target:
  entity_id: switch.fan
data:
  entity_id: switch.fan
  parameter: "LED 1 Blink Status (bottom)"
  value: "Blink"

Service zwave_js.bulk_set_partial_config_parameters

This service will bulk set multiple partial configuration parameters. Be warned that correctly using this service requires advanced knowledge of Z-Wave to use correctly.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to bulk set partial configuration parameters on. At least one entity_id, device_id, or area_id must be provided.
device_id no Device ID (or list of device IDs) to bulk set partial configuration parameters on. At least one entity_id, device_id, or area_id must be provided.
area_id no Area ID (or list of area IDs) for devices/entities to bulk set partial configuration parameters on. At least one entity_id, device_id, or area_id must be provided.
parameter yes The parameter number of the property. The name of the property is case sensitive.
value yes Either the raw integer value that you want to set for the entire parameter, or a dictionary where the keys are either the bitmasks (in integer or hex form) or the partial parameter name and the values are the value you want to set on each partial (either the integer value or a named state when applicable). Note that when using a dictionary, and bitmasks that are not provided will be set to their currently cached values.

Examples of bulk setting partial parameter values

Let’s use parameter 21 for this device as an example to show how partial parameters can be bulk set. In this case, we want to set 0xff to 127, 0x7f00 to 10, and 0x8000 to 1 (or the raw value of 4735).

When using the dictionary format to map the partial parameter to values, the cached values for the missing partial parameters will be used. So in examples 2, 3, 4, and 5, the service would use the cached value for partial parameters 0xff0000, 0x3f000000, and 0x40000000 because new values haven’t been specified. If you send the raw integer value, it is assumed that you have calculated the full value, so in example 1, partial parameters 0xff0000, 0x3f000000, and 0x40000000 would all be set to 0.

Example 1:

service: zwave_js.bulk_set_partial_config_parameters
target:
  entity_id: switch.fan
data:
  parameter: 21
  value: 4735

Example 2:

service: zwave_js.bulk_set_partial_config_parameters
target:
  entity_id: switch.fan
data:
  parameter: 21
  value:
    0xff: 127
    0x7f00: 10
    0x8000: 1

Example 3:

service: zwave_js.bulk_set_partial_config_parameters
target:
  entity_id: switch.fan
data:
  parameter: 21
  value:
    255: 127
    32512: 10
    32768: 1

Example 4:

service: zwave_js.bulk_set_partial_config_parameters
target:
  entity_id: switch.fan
data:
  parameter: 21
  value:
    255: 127
    32512: 10
    32768: "Fine"

Example 5:

service: zwave_js.bulk_set_partial_config_parameters
target:
  entity_id: switch.fan
data:
  parameter: 21
  value:
    "Quick Strip Effect: Hue Color Wheel / Color Temp": 127
    "Quick Strip Effect Intensity": 10
    "Quick Strip Effect Intensity Scale": "Fine"

Service zwave_js.refresh_value

This service will refresh the value(s) for an entity. This service will generate extra traffic on your Z-Wave network and should be used sparingly. Updates from devices on battery may take some time to be received.

Service Data Attribute Required Description
entity_id yes Entity or list of entities to refresh values for.
refresh_all_values no Whether all values should be refreshed. If false, only the primary value will be refreshed. If true, all watched values will be refreshed.

Service zwave_js.set_value

This service will set a value on a Z-Wave device. It is for advanced use cases where you need to modify the state of a node and can’t do it using native Home Assistant entity functionality. Be warned that correctly using this service requires advanced knowledge of Z-Wave. The service provides minimal validation and blindly calls the Z-Wave JS API, so if you are having trouble using it, it is likely because you are providing an incorrect value somewhere. To set a config parameter, you should use the zwave_js.set_config_parameter or zwave_js.bulk_set_partial_config_parameters services instead of this one.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to set the value on. At least one entity_id, device_id, or area_id must be provided.
device_id no Device ID (or list of device IDs) to set the value on. At least one entity_id, device_id, or area_id must be provided.
area_id no Area ID (or list of area IDs) for devices/entities to set the value on. At least one entity_id, device_id, or area_id must be provided.
command_class yes ID of Command Class that you want to set the value for.
property yes ID of Property that you want to set the value for.
property_key no ID of Property Key that you want to set the value for.
endpoint no ID of Endpoint that you want to set the value for.
value yes The new value that you want to set.
options no Set value options map. Refer to the Z-Wave JS documentation for more information on what options can be set.
wait_for_result no Boolean that indicates whether or not to wait for a response from the node. If not included in the payload, the integration will decide whether to wait or not. If set to true, note that the service call can take a while if setting a value on an asleep battery device.

Service zwave_js.multicast_set_value

This service will set a value on multiple Z-Wave devices using multicast. It is for advanced use cases where you need to set the same value on multiple nodes simultaneously. Be warned that correctly using this service requires advanced knowledge of Z-Wave. The service provides minimal validation beyond what is necessary to properly call the Z-Wave JS API, so if you are having trouble using it, it is likely because you are providing an incorrect value somewhere.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to set the value on via multicast. At least two entity_id or device_id must be resolved if not broadcasting the command.
device_id no Device ID (or list of device IDs) to set the value on via multicast. At least two entity_id or device_id must be resolved if not broadcasting the command.
area_id no Area ID (or list of area IDs) for devices/entities to set the value on via multicast. At least two entity_id or device_id must be resolved if not broadcasting the command.
broadcast no Boolean that indicates whether you want the message to be broadcast to all nodes on the network. If you have only one Z-Wave network configured, you do not need to provide a device_id or entity_id when this is set to true. When you have multiple Z-Wave networks configured, you MUST provide at least one device_id or entity_id so the service knows which network to target.
command_class yes ID of Command Class that you want to set the value for.
property yes ID of Property that you want to set the value for.
property_key no ID of Property Key that you want to set the value for.
endpoint no ID of Endpoint that you want to set the value for.
value yes The new value that you want to set.
options no Set value options map. Refer to the Z-Wave JS documentation for more information on what options can be set.

Service zwave_js.invoke_cc_api

Call this service to use the Command Class API directly. In most cases, the zwave_js.set_value service will accomplish what you need to, but some Command Classes have API commands that can’t be accessed via that service. Refer to the Z-Wave JS Command Class documentation for the available APIs and arguments. Be sure to know what you are doing when calling this service.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to ping. At least one entity_id, device_id, or area_id must be provided. If endpoint is specified, that endpoint will be used to make the CC API call for all devices, otherwise the primary value endpoint will be used for each entity.
device_id no Device ID (or list of device IDs) to ping. At least one entity_id, device_id, or area_id must be provided. If endpoint is specified, that endpoint will be used to make the CC API call for all devices, otherwise the root endpoint (0) will be used for each device.
area_id no Area ID (or list of area IDs) for devices/entities to ping. At least one entity_id, device_id, or area_id must be provided. If endpoint is specified, that endpoint will be used to make the CC API call for all devices, otherwise the root endpoint (0) will be used for each zwave_js device in the area.
command_class yes ID of Command Class that you want to set the value for.
endpoint no The endpoint to call the CC API against.
method_name yes The name of the method that is being called from the CC API.
parameters yes A list of parameters to pass to the CC API method.

Service zwave_js.ping

NOTE: This service has been deprecated and replaced with a new button entity. The service will still work for now but will be removed in a future release. Users are advised to move their automations to use the button.press service with the new entity which is a like for like replacement.

Calling this service forces Z-Wave JS to try to reach a node. This can be used to update the status of the node in the Z-Wave network when you think it doesn’t accurately reflect reality, e.g. reviving a failed/dead node or marking the node as asleep.

Service Data Attribute Required Description
entity_id no Entity (or list of entities) to ping. At least one entity_id, device_id, or area_id must be provided.
device_id no Device ID (or list of device IDs) to ping. At least one entity_id, device_id, or area_id must be provided.
area_id no Area ID (or list of area IDs) for devices/entities to ping. At least one entity_id, device_id, or area_id must be provided.

This service can be used in tandem with the node status sensor to track the node’s status and fire the command when needed. Here’s an example automation that would ping a node when the node status sensor state has changed to dead and remained dead for 30 minutes. Note that this may be useful for some devices but will definitely not be useful for all. In cases where it is not useful, all you will be doing is generating additional traffic on your Z-Wave network which could slow down communication.

trigger:
  platform: state
  entity_id:
    - sensor.z_wave_thermostat_node_status
    - sensor.z_wave_lock_node_status
  to: "dead"
  for: "00:30:00"
action:
  - service: zwave_js.ping
    target:
      entity_id: ""

Service zwave_js.reset_meter

This service will reset the meters on a device that supports the Meter Command Class.

Service Data Attribute Required Description
entity_id yes Entity (or list of entities) for the meters you want to reset.
meter_type no If supported by the device, indicates the type of meter to reset. Not all devices support this option.
value no If supported by the device, indicates the value to reset the meter to. Not all devices support this option.

Service zwave_js.set_lock_usercode

This service will set the usercode of a lock to X at code slot Y. Valid usercodes are at least 4 digits.

Service Data Attribute Required Description
entity_id no Lock entity or list of entities to set the usercode.
code_slot yes The code slot to set the usercode into.
usercode yes The code to set in the slot.

Service zwave_js.clear_lock_usercode

This service will clear the usercode of a lock in code slot X. Valid code slots are between 1-254.

Service Data Attribute Required Description
entity_id no Lock entity or list of entities to clear the usercode.
code_slot yes The code slot to clear the usercode from.

Events

There are two types of events that are fired, notification events and value notification events. You can test what events come in using the event developer tools in Home Assistant and subscribing to the zwave_js_notification or zwave_js_value_notification events respectively. Once you know what the event data looks like, you can use this to create automations.

Node events (Notification)

Check the Z-Wave JS notification event documentation for an explanation of the notification event data. These events fire with the zwave_js_notification event type.

Notification event data can be used to trigger automations, both in the automation UI and in YAML, using the event platform. Check the details of an event by subscribing to the zwave_js_notification event in the Developers Tools.

# Fires whenever the lock is unlocked by the keypad.
trigger:
  - platform: event
    event_type: zwave_js_notification
    event_data:
      node_id: 14
      event_label: "Keypad unlock operation"

Notification Command Class

These are notification events fired by devices using the Notification command class. The parameters attribute in the example below is optional, and when it is included, the keys in the attribute will vary depending on the event.

{
    "domain": "zwave_js",
    "node_id": 1,
    "home_id": "974823419",
    "device_id": "ad8098fe80980974",
    "command_class": 113,
    "command_class_name": "Notification",
    "type": 6,
    "event": 5,
    "label": "Access Control",
    "event_label": "Keypad lock operation",
    "parameters": {"userId": 1}
}

Multilevel Switch Command Class

These are notification events fired by devices using the Multilevel Switch command class. There are events for start level change and stop level change. These would typically be used in a device like the Aeotec Nano Dimmer with an external switch to respond to long button presses.

Start Level Change
{
    "domain": "zwave_js",
    "node_id": 1,
    "home_id": 974823419,
    "device_id": "2f44f0d4152be3123f7ad40cf3abd095",
    "command_class": 38,
    "command_class_name": "Multilevel Switch",
    "event_type": 4,
    "direction": "up"
},
Stop Level Change
{
    "domain": "zwave_js",
    "node_id": 8,
    "home_id": 3803689189,
    "device_id": "2f44f0d4152be3123f7ad40cf3abd095",
    "command_class": 38,
    "command_class_name": "Multilevel Switch",
    "event_type": 5,
    "direction": null
},

Entry Control Command Class

These are notification events fired by devices using the Entry Control command class.

{
    "domain": "zwave_js",
    "node_id": 1,
    "home_id": "974823419",
    "device_id": "ad8098fe80980974",
    "command_class": 111,
    "command_class_name": "Entry Control",
    "event_type": 6,
    "data_type": 5,
    "event_data": "555"
}

Scene events (Value Notification)

Value Notifications are used for stateless values, like Central Scenes and Scene Activation. These events fire with the zwave_js_value_notification event type.

Value Notification example:

{
    "domain": "zwave_js",
    "node_id": 1,
    "home_id": "974823419",
    "endpoint": 0,
    "device_id": "ad8098fe80980974",
    "command_class": 91,
    "command_class_name": "Central Scene",
    "label": "Event value",
    "property": "scene",
    "property_name": "scene",
    "property_key": "001",
    "property_key_name": "001",
    "value": "KeyPressed",
    "value_raw": 0
}

Value updated events

Due to some devices not following the Z-Wave Specification, there are scenarios where a device will send a value update but a state change won’t be detected in Home Assistant. To address the gap, the zwave_js_value_updated event can be listened to to capture any value updates that are received by an affected entity. This event is enabled on a per device and per entity domain basis, and the entities will have assumed_state set to true. This change will affect how the UI for these entities look; if you’d like the UI to match other entities of the same type where assumed_state is not set to true, you can override the setting via entity customization.

The following devices currently support this event:

Make Model Entity Domain
Vision Security ZL7432 In Wall Dual Relay Switch switch

Value Updated example:

{
    "node_id": 4,
    "home_id": "974823419",
    "device_id": "ad8098fe80980974",
    "entity_id": "switch.in_wall_dual_relay_switch",
    "command_class": 37,
    "command_class_name": "Switch Binary",
    "endpoint": 0,
    "property": "currentValue",
    "property_name": "currentValue",
    "property_key": null,
    "property_key_name": null,
    "value": 0,
    "value_raw": 0
}

This event can be used to trigger a refresh of values when the new state needs to be retrieved. Here’s an example automation:

trigger:
  platform: event
  event_type: zwave_js_value_updated
  event_data:
    entity_id: switch.in_wall_dual_relay_switch
action:
  - service: zwave_js.refresh_value
    target:
      entity_id: switch.in_wall_dual_relay_switch_2, switch.in_wall_dual_relay_switch_3

Automations

The Z-Wave integration provides its own trigger platforms which can be used in automations.

zwave_js.value_updated

This trigger platform can be used to trigger automations on any Z-Wave JS value update, including Z-Wave JS values that aren’t supported in Home Assistant via entities. While they can’t be authored from the automation UI, they can be authored in YAML directly in your configuration.yaml.

Example automation trigger configuration

# Fires whenever the `latchStatus` value changes from `closed` to `opened` on the three devices (devices will be derived from an entity ID).
trigger:
  platform: zwave_js.value_updated
  # At least one `device_id` or `entity_id` must be provided
  device_id: 45d7d3230dbb7441473ec883dab294d4  # Garage Door Lock device ID
  entity_id:
    - lock.front_lock
    - lock.back_door
  # `property` and `command_class` are required
  command_class: 98 # Door Lock CC
  property: "latchStatus"
  # `property_key` and `endpoint` are optional
  property_key: null
  endpoint: 0
  # `from` and `to` will both accept lists of values and the trigger will fire if the value update matches any of the listed values
  from:
    - "closed"
    - "jammed"
  to: "opened"

Available Trigger Data

In addition to the standard automation trigger data, the zwave_js.value_updated trigger platform has additional trigger data available for use.

Template variable Data
trigger.device_id Device ID for the device in the device registry.
trigger.node_id Z-Wave node ID.
trigger.command_class Command class ID.
trigger.command_class_name Command class name.
trigger.property Z-Wave Value’s property.
trigger.property_name Z-Wave Value’s property name.
trigger.property_key Z-Wave Value’s property key.
trigger.property_key_name Z-Wave Value’s property key name.
trigger.endpoint Z-Wave Value’s endpoint.
trigger.previous_value The previous value for this Z-Wave value (translated to a state name when possible).
trigger.previous_value_raw The raw previous value for this Z-Wave value (the key of the state when a state is named).
trigger.current_value The current value for this Z-Wave value (translated to a state name when possible).
trigger.current_value_raw The raw current value for this Z-Wave value (the key of the state when a state is named).

zwave_js.event

This trigger platform can be used to trigger automations on any Z-Wave JS controller, driver, or node event, including events that may not be handled by Home Assistant automatically. Refer to the linked Z-Wave JS documentation to learn more about the available events and the data that is sent along with it.

There is strict validation in place based on all known event types, so if you come across an event type that isn’t supported, please open a GitHub issue in the home-assistant/core repository.

Example automation trigger configuration

# Fires whenever the `interview failed` event is fired on the three devices (devices will be derived from device and entity IDs).
trigger:
  platform: zwave_js.event
  # At least one `device_id` or `entity_id` must be provided for `node` events. For any other events, a `config_entry_id` needs to be provided.
  device_id: 45d7d3230dbb7441473ec883dab294d4  # Garage Door Lock device ID
  entity_id:
    - lock.front_lock
    - lock.back_door
  config_entry_id:
  # `event_source` and `event` are required
  event_source: node   # options are node, controller, and driver
  event: "interview failed"  # event names can be retrieved from the Z-Wave JS docs (see links above)
  # `event_data` and `partial_dict_match` are optional. If `event_data` isn't included, all events of a given type for the given context will trigger the automation. When the `interview failed` event is fired, all argument live in a dictionary within the `event_data` dictionary under the `args` key. The default behavior is to require a full match of the event_data dictionary below and the dictionary that is passed to the event. By setting `partial_dict_match` to true, Home Assistant will check if the isFinal argument is true and ignore any other values in the dictionary. If this setting was false, this trigger would never fire because the dictionary always contains more keys than `isFinal` so the comparsion check would never evaluate to true.
  event_data:
    args:
      isFinal: true
  partial_dict_match: true  # defaults to false

Available Trigger Data

In addition to the standard automation trigger data, the zwave_js.event trigger platform has additional trigger data available for use.

Template variable Data
trigger.device_id Device ID for the device in the device registry (only included for node events).
trigger.node_id Z-Wave node ID (only included for node events).
trigger.event_source Source of event (node, controller, or driver).
trigger.event Name of event.
trigger.event_data Any data included in the event.

Migrating from previous Z-Wave implementations

If you are switching from the legacy zwave integration to the new Z-Wave integration, you will not need to recreate your entire network, as the network is stored on your stick. A few things, such as how you receive central scene events will work differently than they did before.

Automatic migration wizard

If you are using the legacy zwave integration, there is a migration wizard that will help you set up the Z-Wave integration, remove the legacy zwave integration and migrate the entities and devices that can be mapped from the legacy zwave integration to the Z-Wave integration. The migration wizard is available from the legacy zwave integration configuration panel in the GUI.

Some entities may not be able to migrate automatically and you will need to rename the corresponding available Z-Wave entities manually. Before completing the migration you will be shown a list of entities that could not be migrated automatically, and you’ll have the option to abort or continue with the migration.

Manual migration path from legacy zwave or OpenZWave

  1. Make a backup of your Home Assistant configuration. You should do this so you’ll be able to quickly revert if you encounter unexpected problems.
Write down/copy your Z-Wave network key somewhere, you are going to need it later.
Make a list of what node ID belongs to each device. Your network (Nodes and their config etc) is stored on the stick but the names you gave your devices and entities are not. This step is optional but will save you a lot of time later.
  1. Remove the legacy zwave or OpenZWave integration from Home Assistant: Settings –> Devices & Services –> Z-Wave (or OpenZWave) –> Press the three dots and click Delete.

If you have configured the legacy zwave manually, make sure to also remove the zwave: section from your configuration.yaml.

  1. If you were running the OpenZWave beta, make sure to stop (or even remove) the OpenZWave add-on, also make sure it doesn’t start automatically at startup.

  2. Restart your Home Assistant host. This step is important to make sure that your Z-Wave stick is released by the operating system.

  3. Install the Z-Wave JS Server of your choice. If you run the supervisor and you’d like to run the standard add-on, you can skip this step if you want. The add-on is installed automatically for you when you choose so in the integration set-up. Remember to fill in the network key you’ve saved before.

  4. Set up the Z-Wave integration and connect it to the server. You should see your nodes being detected by Home Assistant. Carefully watch if the status of the node is “ready”. This means it’s been fully interviewed (and those details cached) by the Z-Wave JS driver. Battery-powered nodes will only be interviewed when they wake up (at scheduled intervals) or if you manually wakeup the device (refer to the device’s manual for instructions).

Activating a battery powered sensor, such as opening a door sensor, is not the same as waking up the device.

  1. Once a node is ready, the entities will be created. Only at this point, is it safe to rename the device (and so its entities). This is actually the only real hard part of the migration as you will need to name all your devices again.

  2. Enjoy your super fast up-to-date Z-Wave network in Home Assistant with support for all modern devices!

Need more help with your migration to Z-Wave?

Please see our Frequently Asked Questions.

There are also a few topics created on the forums that might be helpful:

You can also visit the #zwave channel on our discord.

Advanced installation instructions

If you are using Home Assistant Container, Home Assistant Core, or you don’t want to use the built-in Z-Wave JS Server add-on, you will need to run the Z-Wave JS server yourself, to which the Z-Wave integration will connect.

Running Z-Wave JS Server.

This application provides the connection between your Z-Wave USB stick and Home Assistant. The Home Assistant Z-Wave integration connects to this server via a websocket connection. You need to run this Z-Wave JS server before you can use the integration.

There are multiple ways to run this server:

Option 1: The official Z-Wave JS add-on, as described above

This option is only available for Home Assistant OS (the recommended installation type) and Home Assistant Supervised installations.

This add-on can only be configured via the built-in Z-Wave control panel in Home Assistant.

Option 2: The Zwavejs2Mqtt (aka “Z-Wave JS to MQTT”) add-on installed from the community add-on store

This option is only available for Home Assistant OS (the recommended installation type) and Home Assistant Supervised installations.

This add-on includes the Z-Wave JS Server as part of the Zwavejs2Mqtt application. Despite the name, MQTT is not required to run this add-on and both provide the same Z-Wave JS driver.

The Z-Wave network can be configured via the built-in Z-Wave control panel in Home Assistant and alternatively via the Z-Wave control panel built into Zwavejs2Mqtt. It provides you with a full-fledged, attractive, and feature-complete UI to manage your Z-Wave nodes and settings, which may support more advanced use cases as development continues on the Z-Wave control panel.

Option 3: The Zwavejs2Mqtt Docker container

This is the recommended approach if you’re running Home Assistant Container. See the Zwavejs2Mqtt documentation for instructions.

This method provides the same server application and UI as the Zwavejs2Mqtt add-on. After installing the Docker image, make sure you enable the WS Server in the Home Assistant section of Settings page.

Option 4: Run the Z-Wave JS server yourself

This is considered a very advanced use case. In this case you run the Z-Wave JS Server or Zwavejs2Mqtt NodeJS application directly. Installation and maintaining this is out of scope for this document. See the Z-Wave JS server or Zwavejs2Mqtt GitHub repository for information.

Supported Z-Wave dongle. The Z-Wave controller dongle should be connected to the same host as where the Z-Wave JS server is running. In the configuration for the Z-Wave JS server, you need to provide the path to this stick. It’s recommended to use the /dev/serial-by-id/yourdevice version of the path to your stick, to make sure the path doesn’t change over reboots. The most common known path is /dev/serial/by-id/usb-0658_0200-if00.

Network keys are used to connect securely to compatible devices. The network keys consist of 32 hexadecimal characters, for example, 2232666D100F795E5BB17F0A1BB7A146 (do not use this one, pick a random one). Without network keys security enabled devices cannot be added securely and will not function correctly. You must provide these network keys in the configuration part of the Z-Wave JS Server.

For new installations, unique default keys will be auto-generated for you by the Z-Wave JS add-on. You can also generate those network keys in the Settings section of Zwavejs2Mqtt.

If migrating from the legacy zwave integration, your network key from those integration should be entered as the S0 network key. Those integrations did not support S2 security, so you will not yet have S2 network keys to configure.

Make sure that you keep a backup of these keys in a safe place. You will need to enter the same keys to be able to access securely paired devices.

Installing and configuring the Z-Wave integration in Home Assistant

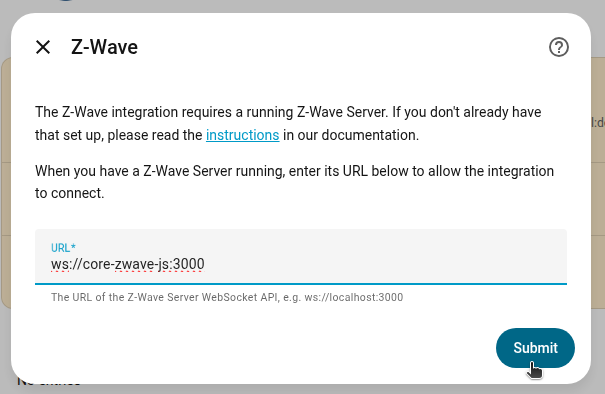

Once you have the Z-Wave JS server up and running, you need to install and configure the integration in Home Assistant (as described above).

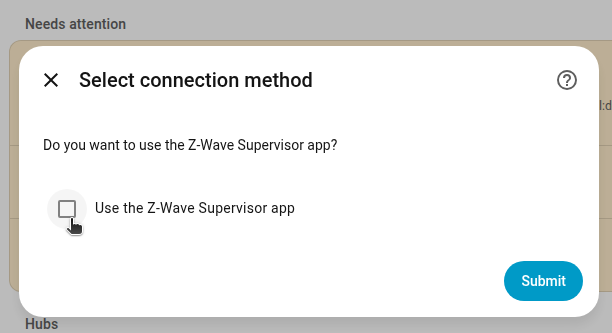

If you’re running full Home Assistant with supervisor, you will be presented with a dialog that asks if you want to use the Z-Wave JS Supervisor add-on. You must uncheck this box if you are running the Z-Wave JS server in any manner other than the official Z-Wave JS add-on, including using Z-Wave JS to MQTT add-on.

If you’re not running the supervisor or you’ve unchecked the above mentioned box, you will be asked to enter a websocket URL (defaults to ws://localhost:3000). It is very important that you fill in the correct (Docker) IP/hostname here. For example for the Z-Wave JS to MQTT add-on this is ws://a0d7b954-zwavejs2mqtt:3000.

Frequently Asked Questions

Supported Devices and Command Classes

See the Z-Wave JS device database.

While there is support for the most common devices, some command classes are not yet (fully) implemented in Z-Wave JS. You can track the status here.

You can also keep track of the roadmap for the Z-Wave integration here.

Installation and Configuration

Which Z-Wave controller should I buy?

Z-Wave supports all known 500 and 700 series Z-Wave controllers. If you are just starting out, we recommend that you purchase a 500 series controller.

For more information, see Supported Z-Wave dongles

Why was I (or why was I not) automatically prompted to install Z-Wave?

Some Z-Wave USB sticks can be auto-discovered, which can simplify the Z-Wave setup process. The following devices have been tested with discovery, and offer a quick setup experience; however, these are not all of the devices supported by Z-Wave:

Device Identifier Vendor
Aeotec Z-Stick Gen5+ 0658:0200 https://aeotec.com/z-wave-usb-stick/
Nortek HUSBZB-1 10C4:8A2A https://www.nortekcontrol.com/products/2gig/husbzb-1-gocontrol-quickstick-combo/
Zooz ZST10 10C4:EA60 https://www.getzooz.com/zooz-zst10-s2-stick.html
Z-WaveMe UZB 0658:0200 https://z-wave.me/products/uzb/

Additional devices may be discoverable, however only devices that have been confirmed discoverable are listed above.

Is there a way to easily export a dump of all my current Z-Wave nodes before I migrate?

You can run the script below in the Developer Tools to get a full oversight of your nodes and their entities.

{%- for node, zstates in states | selectattr('attributes.node_id', 'in', range(1000)) | groupby('attributes.node_id') %}

{%- for s in zstates %}
Node {{ node }};{{ s.name }};{{ s.entity_id }}{% endfor %}

{%- endfor %}

Can I switch between the Official Z-Wave JS add-on and Zwavejs2Mqtt?

You can, but you cannot run them both at the same time. Only one of them can be active at the same time.

How do I switch between the Official Z-Wave JS add-on and Zwavejs2Mqtt?

Switching does not require renaming your devices.

  1. Disable the Z-Wave integration. Do not remove the Z-Wave integration or you will lose all device and entity naming. This will automatically stop the official Z-Wave JS add-on.

  2. Note your network security keys from the official add-on.

  3. Install and configure the Z-Wave JS to MQTT add-on, including setting the location of your Z-Wave device and the network security keys.

  4. Add the Z-Wave integration again (even though it is still installed), and uncheck the “Use the Z-Wave JS Supervisor add-on”. Enter the correct address for the community add-on in the URL field in the next step.

  5. Uninstall the official Z-Wave JS add-on.

  6. Enable the Z-Wave integration.

What’s the benefit of using Zwavejs2Mqtt over the official Add-On?

The official add-on provides the Z-Wave Server in its bare minimum variant, just enough to serve the Home Assistant integration.

The Zwavejs2Mqtt project includes the Z-Wave JS Server for convenience but also provides a Z-Wave Control panel and the ability (hence its name) to serve your Z-Wave network to MQTT. You can leave the MQTT Gateway disabled and only use the Control panel but you can even have the MQTT features enabled at the same time. For example to interact with Z-Wave from other devices, while the Home Assistant integration still works (as long as you keep the WS Server enabled in Zwavejs2Mqtt).

Zwavejs2Mqtt seems to provide discovery of Home Assistant devices on its own too, now I’m confused

Correct, the Zwavejs2Mqtt project existed before Home Assistant had plans to move to the Z-Wave JS Driver. You should use the integration for device discovery and not the MQTT discovery provided by Zwavejs2Mqtt.

Can I run Zwavejs2Mqtt only for the control panel and nothing else?

Sure, in the settings of Zwavejs2Mqtt, make sure to enable “WS Server” and disable “Gateway”.

How do I use my OZW network key in Zwavejs2Mqtt?

You can use your existing network key in Zwavejs2Mqtt but you need to slightly adjust it. The OZW looks like this: 0x01, 0x02, 0x03 etc. while the network key format accepted in Zwavejs2Mqtt looks like this 0102030405 etc.. You can simply edit your existing key and remove the "0x" part and the ", " part so it becomes one large string of numbers.

Should I name my devices in Home Assistant, or in Zwavejs2Mqtt?

Ultimately, this is a personal decision. If you provide a name or location for a device in the Zwavejs2Mqtt UI, that name will be imported into Home Assistant when the integration is reloaded or Home Assistant is restarted. Any entity names, however, will not change if the device has already been set up by Home Assistant. Names set in Zwavejs2Mqtt will not overwrite changes that have already been made in Home Assistant.

Names set in Home Assistant will not import into Zwavejs2Mqtt.

Using Z-Wave

How can I add (include) a new device to my Z-Wave network?

  1. In Home Assistant: open Settings -> Devices & Services -> Z-Wave -> Configure.
  2. Press + ADD DEVICE.
  3. The Z-Wave controller is now in inclusion mode and will not respond to other commands.
  4. Put the device you want to add in inclusion mode. Refer to its manual how this is done.
  5. The UI should confirm that the node was added and it will be immediately visible in Home Assistant. After a short while (seconds to minutes) the entities should also be created.
  6. If the controller fails to add/find your device, cancel the inclusion process (to unblock your network again). In some cases it might help to first remove a node (exclusion) before you add it, even when the device has not been added to this Z-Wave network yet. Another approach would be to factory reset the device. Info about that is in the manual of your device.

If your device is included using S2 security, you may be prompted to enter a PIN number provided with your device. Often, this PIN is provided with the documentation and is also printed on the device itself.

Warning:

  1. Do not move your Z-Wave stick to include devices. This is no longer necessary and leads to broken routes.
  2. Do not initiate device inclusion from the Z-Wave stick itself. This is no longer supported.

Should I use Secure Inclusion?

That depends. There are two generations of Z-Wave security, S0, and S2.

S0 security imposes significant additional traffic on your mesh and is recommended only for devices that require security, such as door locks.

S2 security does not impose additional network traffic and provides additional benefits, such as detecting packet corruption. By default, Z-Wave attempts S2 security during inclusion if supported, falling back to S0 security only when necessary.

How do I remove (exclude) a device from my Z-Wave network?

  1. In Home Assistant: open Settings -> Devices & Services -> Z-Wave -> Configure.
  2. Press REMOVE DEVICE.
  3. Press START EXCLUSION. The Z-Wave controller is now in exclusion mode and will not respond to other commands.
  4. Put the device you want to remove in exclusion mode. Refer to its manual how this is done.
  5. The UI should confirm that the node was removed and the device and entities will be removed from Home Assistant.

Troubleshooting

I’m having a problem, what should I do first?

Many reported issues result from RF interference caused by the system’s USB ports. This can manifest in many ways, including devices that won’t include at all, devices that won’t include securely, sensors with erroneous values (packets corrupted), delayed control of devices, or no ability to control devices. These problems can be intermittent, and they may be newly apparent after switching from ozw, though they existed before, as Z-Wave interviews devices and reports errors differently.

All users are encouraged to use a USB extension cable to prevent such interference. Please try such a cable before opening an issue or requesting support on Discord. It will nearly always be the first troubleshooting step that we ask you to take anyway.

After ensuring you are using an extension cable, perform a network heal.

The combination of these two steps corrects a large number of reported difficulties.

I have an Aeotec Gen5 controller, and it isn’t detected on my Raspberry Pi 4?

The first-generation Gen5 controller has a known bug when plugged into a Pi 4 and possibly other systems. Aeotec released the Gen5+ stick to correct this bug. Gen5 users can plug their sticks into a USB 2.0 hub in order to overcome the issue.

I do not see any entities created for my device in Home Assistant

Entities will be created only after the node is ready (the interview is completed). Also, note that some devices (like button remotes) do not create any entities but will only provide events when a button is pressed. See the events section on how to handle those events in your automations.

If you are certain that your device should have entities and you do not see them (even after a restart of Home Assistant Core), create an issue about your problem on the GitHub issue tracker.

My device does not automatically update its status in HA if I control it manually

Your device might not send automatic status updates to the controller. While the best advice would be to update to recent Z-Wave Plus devices, there is a workaround with active polling (request the status).

Z-Wave does not automatically poll devices on a regular basis. Polling can quickly lead to network congestion and should be used very sparingly and only where necessary.

  • We provide a zwave_js.refresh_value service to allow you to manually poll a value, for example from an automation that only polls a device when there is motion in that same room. If you really need polling, you can enable this in Zwavejs2Mqtt but not in the official add-on.

  • Zwavejs2Mqtt allows you to configure scheduled polling on a per-value basis, which you can use to keep certain values updated. It also allows you to poll individual values on-demand from your automations, which should be preferred over blindly polling all the time if possible.

Polling should only be used as a last resort. You must use it with care and accept the negative impact on your network. Z-Wave is a very low speed network and poll requests can easily flood your network and slow down your commands.

My device is recognized as Unknown Manufacturer and/or some of its functionalities do not work with the Z-Wave integration

When your device is not yet fully interviewed, this info will not yet be present. So make sure your device is interviewed at least once.

If the interview is complete, then the device does not yet have a device file for Z-Wave JS. Unlike other Z-Wave drivers, your device may very well work as intended even without such a file. If your device not fully supported, consider contributing the device configuration file.

How do I get a dump of the current network state?

When trying to determine why something isn’t working as you expect, or when reporting an issue with the integration, it is helpful to know what Z-Wave JS sees as the current state of your Z-Wave network. To get a dump of your current network state, follow the menu:

Settings -> Devices & Services -> Z-Wave -> -> Download diagnostics

Interference issues

Many users have reported issues with interference when the USB stick was directly connected to the machine (proximity). If you are having issues try to use a short USB 2.0 A male to female extension cord.

How to access the Z-Wave logs

Z-Wave JS writes details to its logs. To access these logs go to the following.

Settings -> Devices & Services -> Integrations(tab) -> Z-Wave (CONFIGURE) -> Logs(tab)

You need to keep this browser tab open for logging to be active.
